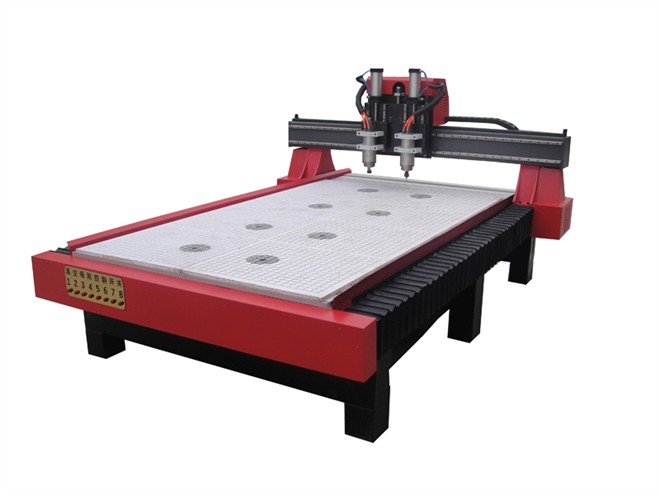

wood cnc router
Application
Widely
used in furniture industry,wooden,products, Archaize furniture
carving,lightbox& mould,other metal or non-materials,etc.
Performance
features
1. Thick steel tube welding structure, more stability
2. XYZ axis apply imported linear guide,running smoothly,ensure
high accuracy
3. Adopting unique intelligent predicition algorithm,make full
use of potential capability to achieve high speed processing,curve-linear
synchronous
4. Save breakpoint,continued carving,humanized design,ensure fully
processing
5. Compatible with advanced and popular CAD/CAM software,such
as ype3/Actcam/CAXA/UG/Pro-e/JD//Actcut,etc
Technical
data
|
Model
|
ZS–X1313
|
ZS-X1318
|
ZS-X1325
|
ZS-X1525
|
ZS-X2025
|
ZS-X2030
|
|
Working size
|
1300*1300mm
|
1300*1800mm
|
1300*2500mm
|
1500*2500 mm
|
2000*2500 mm
|
2000*3000 mm
|
|
Z axis working area
|
160mm ( can upto 200
mm)
|
|
Spindle power
|
1.5kw/2.2kw/3kw/4.5kw frequency conversion
water cooling spindle
|
|
Optional Air cooling
spindle motor,HSD,ELTE,Colombo
|
|
max motion speed
|
30m/min
|
|
Max processing speed
|
20m/min
|
|
spindle speed
|
0-24000rpm/min
|
|
Engraving tools
|
￠3.175mm, ￠4mm,￠6mm,￠12.7mm
|
|
Dictate formate
|
G-code / HPGL
|
|
Resolution
|
0.01mm
|
|
controlling system
|
NC studio (DSP)
|
Optional
1) Vacuum system
2) dust collecting system
3) Automatic oil lubricating system
4) Servo system
5) auto change tools system
6) Can adopt with more spindles
